Circlite Emergency Light

Circlite Emergency Light

Circlite Emergency Light

Circlite Emergency Light

Circlite Emergency Light

Imaged added to CleverSpec

/sites/default/files/2024-03/clevertronics-emergency-lighting-anz-circlite.png
Circlite Emergency Light
Circlite Emergency Light

Circlite
Emergency Light

LED Circular Emergency Light

The Circlite Emergency luminaire’s new style delivers an optimal solution for areas requiring both general and emergency lighting including corridors, stairwells, and walkways.

The new sleek housing features efficient colour select LED’s, large terminal block, optional microwave motion sensor, and robust IP20 polycarbonate construction for wall or ceiling mount application. The self-contained emergency model includes options for both standalone and networked monitoring.

Compliance

  • AS/NZS 2293.3

    AS/NZS 2293.3

  • Regulatory Compliance Mark

    Regulatory Compliance Mark

Range & Testing Compatibility

  • Standard

    Standard

  • TS Trade Series

    TS Trade Series

  • LP

    LP Premium Lithium

  • Zoneworks XT HIVE

    Zoneworks XT Hive

  • Clevertest Plus System

    Clevertest Plus

  • dali-icon-grey

    DALI

Product Lumen Output Power Consumption Emergency Version
Product Lumen Output Power Consumption Emergency Version
240V Circlite
2257lm
20.0W
No
TS Circlite
2257lm
21.9W
Yes
LP Circlite
2257lm
20.4W
Yes

Product Specifications

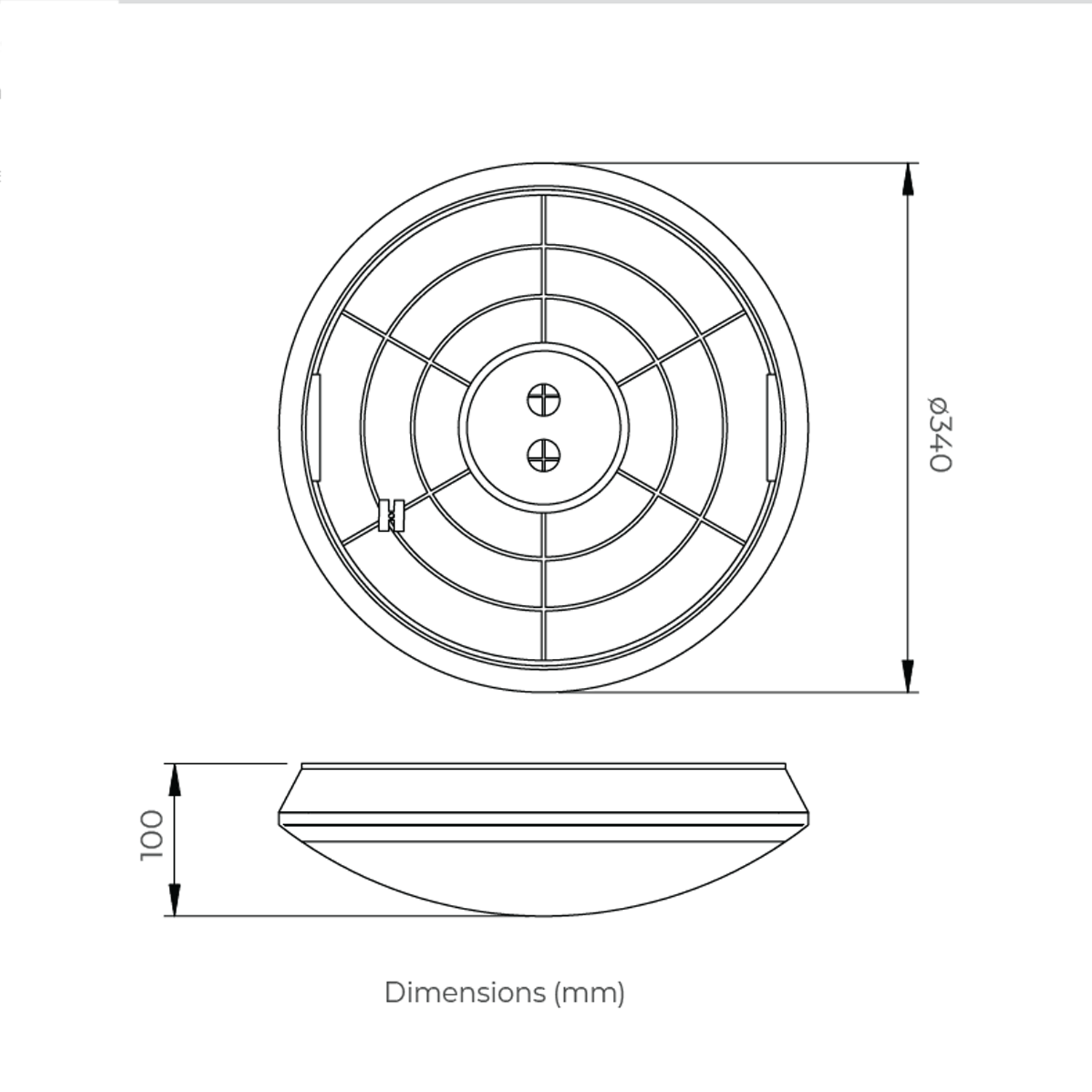

Line Diagrams

Photometry Polar Curves

DATASHEET BROCHURE IES SDOC REVIT INSTALL GUIDE

Circlite Emergency Light family data files can be downloaded here, for a specific model use the search filters below. To request assistance from your local Clevertronics office, use the Contact form at the bottom of the page.

Clevertronics Product
AUD
Format: 9.99

Specifying a project? Use our technical documentation search

Find the documents you need for a specification with our technical resource search. All our product technical files and downloads in one space.

Choose an emergency lighting solution

Select the right range and testing option solution for your project or application.
If you are not sure what you need, check out our solutions page for quick guide.

Range Comparison Clevertronics LP Premium Logo Clevertronics L10 Optimum Logo
Maintenance Savings vs. NiCD
50%
80%
Standard Clevertest Plus
Yes
Yes
Cost of ownership
Low
Lowest
Battery Life
+8 Years
+12 Years
Option Comparison Clevertronics Clevertest Plus System logo Clevertronics Zoneworks XT Hive logo
Testing Method
Self testing
Remote monitor & test
Lifetime system support
No
Yes
Electronic Reporting & Maintenance Log
Yes
Yes
